Irrigation System Components Explained: A Complete Guide to Efficient Watering

When I first started learning about irrigation systems, I was amazed at how many components work together to keep plants thriving. It’s not just about turning on a hose—there’s a whole system designed to deliver water efficiently and effectively. Whether you’re a gardening enthusiast or managing a large-scale farm, understanding these components can make all the difference.

Irrigation System Components Explained: A Complete Guide to Efficient Watering

From pipes and valves to sprinklers and controllers, each part plays a critical role in ensuring plants get the water they need. It might seem overwhelming at first, but breaking it down piece by piece makes it much easier to grasp. Once you know how everything connects, you’ll feel more confident managing or even designing your own irrigation system.

Overview Of Irrigation Systems

Irrigation systems are designed to deliver water efficiently to plants. They consist of interconnected components that regulate water flow, coverage, and timing. These systems help maintain healthy plant growth, conserve water, and reduce manual labor.

Each system type has unique characteristics suited to specific needs. Drip irrigation, for example, delivers water directly to plant roots, minimizing waste. Sprinkler systems distribute water evenly across surfaces, making them ideal for lawns or fields. Surface irrigation relies on gravity to channel water, commonly used in agriculture. While their mechanisms differ, all systems aim to optimize water use and support plant health.

Essential Components Of An Irrigation System

Every irrigation system relies on a set of critical components to function effectively. Understanding these parts can simplify set-up and maintenance, ensuring consistent water delivery.

Water Source

The water source supplies the system based on availability and system type. Common sources include wells, reservoirs, lakes, or municipal water supply lines. For instance, residential systems often draw from city water, while agricultural systems might use surface water or underground wells.

Pumps

Pumps move water from the source to the irrigation system. I use centrifugal pumps for most situations due to their efficiency, but submersible pumps work better for deep wells. The pump size depends on factors like flow rate, pressure needs, and elevation differences.

Pipes And Tubing

Pipes and tubing channel water to designated areas. PVC pipes handle high pressure effectively and suit mainlines, while flexible polyethylene tubing accommodates smaller emitters. Using the right sizing prevents leaks or pressure drops.

Valves

Valves control water flow and sectional access points. Electric control valves work with controllers for automation, while manual gate or ball valves allow simple hand-operated adjustments. Check valves prevent backflow, protecting the system from contamination.

Sprinklers And Emitters

Sprinklers spread water over wide areas, ideal for lawns or fields. Emitters, by contrast, release lower volumes of water directly near plant roots, maximizing water efficiency in drip systems. I often mix these elements in hybrid systems for varied landscaping needs.

Advanced Components And Technologies

Modern irrigation systems incorporate advanced components to enhance efficiency and reduce manual intervention. These technologies ensure optimal water usage while adapting to environmental and plant-specific needs.

Controllers And Timers

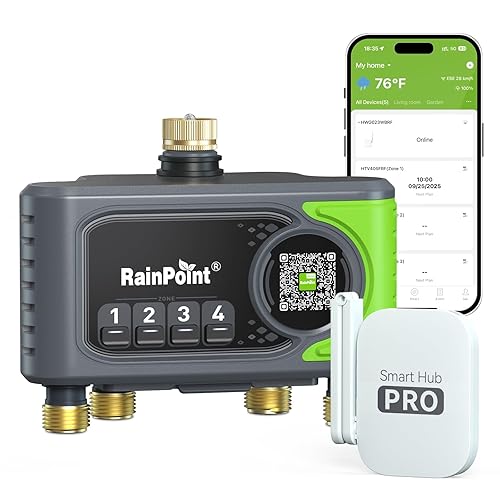

Irrigation controllers manage scheduling by automating watering cycles. Timers, integrated or standalone, allow precise adjustments to durations and intervals. Smart controllers, connected to Wi-Fi, use data like weather forecasts and moisture levels to optimize schedules. They can also be programmed through mobile apps for remote management.

Sensors And Automation

Sensors measure environmental variables to adjust irrigation in real time. Soil moisture sensors detect water content, ensuring plants receive adequate hydration without overwatering. Rain sensors interrupt cycles during precipitation, avoiding unnecessary watering. Flow sensors monitor system performance by identifying leaks or irregularities.

Filters And Regulators

Filters maintain system integrity by removing sediments and debris from water supplies. Common filter types include mesh and disk filters for large particles and inline filters for fine debris. Regulators stabilize pressure to prevent damage to components like emitters and sprinklers. Pressure-regulating devices ensure consistent performance across the system, even in areas with variable water pressure.

Choosing The Right Components For Your Needs

Selecting irrigation components depends on your system’s specific requirements and the size of the area being irrigated. Understand what your plants need, the water source you use, and your budget before choosing.

  1. Assess Water Source Suitability

Confirm the availability and capacity of your water source. Municipal supplies generally offer consistent pressure, while wells or ponds may need additional pumps and filters for adequate performance.

  1. Match Components to Irrigation Type

Choose components that fit your system type. For drip systems, use emitters and tubing designed for low pressure. For sprinkler-based setups, select sprinklers suited for even coverage across the intended area.

  1. Consider Environmental Conditions

Account for your local climate and soil type. In sandy soils, slower-emitting components, like certain drippers, could prevent water waste. Regions with high rainfall might benefit from smart controllers and rain sensors to minimize unnecessary irrigation.

  1. Prioritize Efficiency

Seek out high-efficiency options to conserve water and energy. Smart timers, moisture sensors, and pressure regulators ensure precise watering, reducing waste and utility costs.

  1. Scale Components to Area Size

Pick scalable solutions. Larger plots might need robust pumps, larger pipes, and multiple zones controlled by advanced controllers. Smaller gardens often work efficiently with simpler setups like gravity-fed drip systems.

  1. Plan for Maintenance Needs

Opt for easy-to-maintain components. Filters that are straightforward to clean and durable pipes help simplify upkeep, extending system longevity and reducing repairs.

Aligning each component with your irrigation approach ensures a tailored, effective system that balances efficiency with plant health.

Maintenance And Troubleshooting Tips

Regular maintenance extends the lifespan of an irrigation system while ensuring consistent performance. I examine all system components periodically to identify any wear, leaks, or blockages. Cleaning filters, checking emitters for clogs, and inspecting pipes for cracks prevent disruptions.

System upkeep involves verifying water pressure levels to avoid uneven watering. I monitor for any pressure irregularities, as these often indicate issues like valve blockages or damaged pipes. Adjusting pressure regulators and replacing faulty parts keeps the system working efficiently.

Troubleshooting common issues minimizes downtime. If sprinklers fail to cover areas evenly, I test for misaligned heads or debris. Low water flow typically points to a clogged nozzle, while standing water can result from broken pipes or improperly set timers. Correcting these problems restores proper operation.

Seasonal adjustments optimize system performance. I reduce watering frequency during colder months and flush out the system to clear debris before winter. Draining and insulating exposed pipes prevents freeze damage. Before peak seasons, I ensure all components are primed for increased use.

Conclusion

Irrigation systems might seem complex at first, but understanding their components and how they work together can make a world of difference. Whether you’re setting up a small garden or managing a large farm, taking the time to choose the right tools and technologies ensures your system runs smoothly and efficiently.

By focusing on proper maintenance and staying open to advancements like smart controllers and sensors, you can save water, reduce manual effort, and keep your plants thriving. A well-designed irrigation system doesn’t just support healthy growth—it also makes your life a whole lot easier.
